Helm Chart를 이용하여 nginx 설치하기

실습 환경은 Cloud9에서 진행하며, Helm 설치는 간단히 설명한다.

---

Helm 설치



아래 명령어를 통해 Helm CLI를 설치한다.

$ curl -sSL https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 | bash
Downloading https://get.helm.sh/helm-v3.7.0-linux-amd64.tar.gz
Verifying checksum... Done.
Preparing to install helm into /usr/local/bin
helm installed into /usr/local/bin/helm



helm version을 입력하면 설치된 버전 이외에 WARNING 문구가 표시된다.

오류를 보면 .kube/config 파일이 insecure하기 때문에 표시되는 오류인 것 같다.

mzmz01:~/environment $ helm version
WARNING: Kubernetes configuration file is group-readable. This is insecure. Location: /home/ec2-user/.kube/config
WARNING: Kubernetes configuration file is world-readable. This is insecure. Location: /home/ec2-user/.kube/config
version.BuildInfo{Version:"v3.7.0", GitCommit:"eeac83883cb4014fe60267ec6373570374ce770b", GitTreeState:"clean", GoVersion:"go1.16.8"}



.kube/config 파일의 권한을 보면 group, other에 각각 read 권한이 부여되어 있다.

user를 제외하고 read 권한을 제거해주자.

$ ls -al
-rw-rw-r--  1 ec2-user ec2-user 4377 Oct  7 09:19 config

$ sudo chmod g-r config
$ sudo chmod o-r config



다시 helm version을 확인해보자.

$ helm version
version.BuildInfo{Version:"v3.7.0", GitCommit:"eeac83883cb4014fe60267ec6373570374ce770b", GitTreeState:"clean", GoVersion:"go1.16.8"}



Helm Chart 저장소 등록



helm chart repository를 추가해준다.

mzmz01:~/environment $ helm repo add stable https://charts.helm.sh/stable
"stable" has been added to your repositories

mzmz01:~/environment $ helm search repo stable
NAME                                    CHART VERSION   APP VERSION             DESCRIPTION
stable/acs-engine-autoscaler            2.2.2           2.1.1                   DEPRECATED Scales worker nodes within agent pools
stable/aerospike                        0.3.5           v4.5.0.5                DEPRECATED A Helm chart for Aerospike in Kubern...
stable/airflow                          7.13.3          1.10.12                 DEPRECATED - please use: https://github.com/air...
stable/ambassador                       5.3.2           0.86.1                  DEPRECATED A Helm chart for Datawire Ambassador
stable/anchore-engine                   1.7.0           0.7.3                   Anchore container analysis and policy evaluatio...
stable/apm-server                       2.1.7           7.0.0                   DEPRECATED The server receives data from the El...



Helm Chart를 업데이트 해준다.

mzmz01:~/environment $ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "stable" chart repository
Update Complete. ⎈Happy Helming!⎈



이번 실습에선 nginx 서버를 설치해야 하므로 nginx와 관련된 repository를 검색한다.

mzmz01:~/environment $ helm search repo nginx
NAME                            CHART VERSION   APP VERSION     DESCRIPTION
stable/nginx-ingress            1.41.3          v0.34.1         DEPRECATED! An nginx Ingress controller that us...
stable/nginx-ldapauth-proxy     0.1.6           1.13.5          DEPRECATED - nginx proxy with ldapauth
stable/nginx-lego               0.3.1                           Chart for nginx-ingress-controller and kube-lego
stable/gcloud-endpoints         0.1.2           1               DEPRECATED Develop, deploy, protect and monitor...



bitnami repository도 추가해준다.

Bitnami NginX는 통합된 php, mysql, nginx 개발환경을 제공한다.

mzmz01:~/environment $ helm repo add bitnami https://charts.bitnami.com/bitnami
"bitnami" has been added to your repositories



다시 nginx repo를 검색하면 위 검색 결과에 추가된 내용을 확인할 수 있다.

mzmz01:~/environment $ helm search repo nginx
NAME                                    CHART VERSION   APP VERSION     DESCRIPTION
bitnami/nginx                           9.5.6           1.21.3          Chart for the nginx server
bitnami/nginx-ingress-controller        7.6.21          0.48.1          Chart for the nginx Ingress controller
stable/nginx-ingress                    1.41.3          v0.34.1         DEPRECATED! An nginx Ingress controller that us...
stable/nginx-ldapauth-proxy             0.1.6           1.13.5          DEPRECATED - nginx proxy with ldapauth
stable/nginx-lego                       0.3.1                           Chart for nginx-ingress-controller and kube-lego
bitnami/kong                            4.1.4           2.6.0           Kong is a scalable, open source API layer (aka ...
stable/gcloud-endpoints                 0.1.2           1               DEPRECATED Develop, deploy, protect and monitor...



bitnami/nginx repository를 통해 서버를 설치한다.

mzmz01:~/environment $ helm install nginx bitnami/nginx
NAME: nginx
LAST DEPLOYED: Thu Oct  7 17:28:43 2021
NAMESPACE: default
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
** Please be patient while the chart is being deployed **

NGINX can be accessed through the following DNS name from within your cluster:

    nginx.default.svc.cluster.local (port 80)

To access NGINX from outside the cluster, follow the steps below:

1. Get the NGINX URL by running these commands:

  NOTE: It may take a few minutes for the LoadBalancer IP to be available.
        Watch the status with: 'kubectl get svc --namespace default -w nginx'

    export SERVICE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].port}" services nginx)
    export SERVICE_IP=$(kubectl get svc --namespace default nginx -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
    echo "http://${SERVICE_IP}:${SERVICE_PORT}"



Service, Pod, Deployment를 각각 확인한다.

mzmz01:~/environment $ kubectl get svc,po,deploy
NAME                 TYPE           CLUSTER-IP      EXTERNAL-IP                                                               PORT(S)        AGE
service/kubernetes   ClusterIP      172.20.0.1      <none>                                                                    443/TCP        30h
service/nginx        LoadBalancer   172.20.212.35   a53938eb41b2041e69361d34125ea204-1918174223.us-west-2.elb.amazonaws.com   80:30357/TCP   87s

NAME                         READY   STATUS    RESTARTS   AGE
pod/nginx-854656fbf9-b5lwx   1/1     Running   0          87s

NAME                    READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nginx   1/1     1            1           87s



nginx 서비스의 상세 정보를 확인한다.

mzmz01:~/environment $ kubectl get svc nginx -o wide
NAME    TYPE           CLUSTER-IP      EXTERNAL-IP                                                               PORT(S)        AGE     SELECTOR
nginx   LoadBalancer   172.20.212.35   a53938eb41b2041e69361d34125ea204-1918174223.us-west-2.elb.amazonaws.com   80:30357/TCP   2m31s   app.kubernetes.io/instance=nginx,app.kubernetes.io/name=nginx

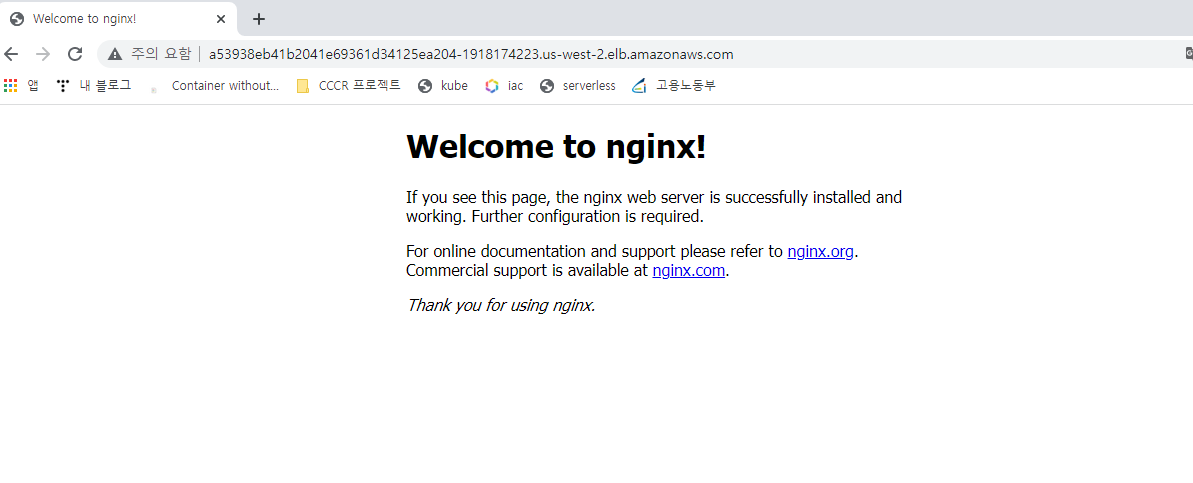

service의 EXTERNAL-IP로 접속하면 정상적으로 nginx 서버가 구축된 것을 확인할 수 있다.



혹은 URL의 공인 IP 주소를 확인하여 접속해본다.

mzmz01:~/environment $ dig +short a53938eb41b2041e69361d34125ea204-1918174223.us-west-2.elb.amazonaws.com
35.83.239.60
34.223.130.199
52.38.169.195
